Application Lifecycle Management for the User Experience
Application Lifecycle Management (ALM) enables your governance, development, and maintenance of Anaplan use cases. You can now work with ALM features in Anaplan’s User Experience (UX) to manage the lifecycle of your pages alongside that of your models.
With the UX, you now build pages inside apps. Apps contain all the different pages users need when analyzing data and planning. Pages connect to models. A page displays data from its source model, but is not a part of the model in the way a dashboard is. Pages do not sync with ALM when you run a model sync.
We’ve developed a roadmap of features to enable you to work with your apps and pages throughout the ALM workflow. Phase one is now complete.
UX ALM paradigm compared to model-sync ALM
ALM for models requires separate models for each lifecycle phase (for example: development, test, and production); changes made in development are promoted through the lifecycle via the model-synchronization functionality.
The vision for UX ALM is to only require a single app to support multiple lifecycle phases. This video visualizes the concept and demonstrates the new functionality:
https://www.youtube.com/watch?v=qwWxuTxx1KINote: A single page only displays data from one source model at a time and all the cards on a page display data from the same model. However, the ability to associate multiple models with a page enables you to switch between source models as part of an ALM workflow. When you switch to a new source model, the data that displays on your page and its cards updates.
You can make changes to draft pages based on data from your development model, then publish your changes to end users after you synchronize your development and production models

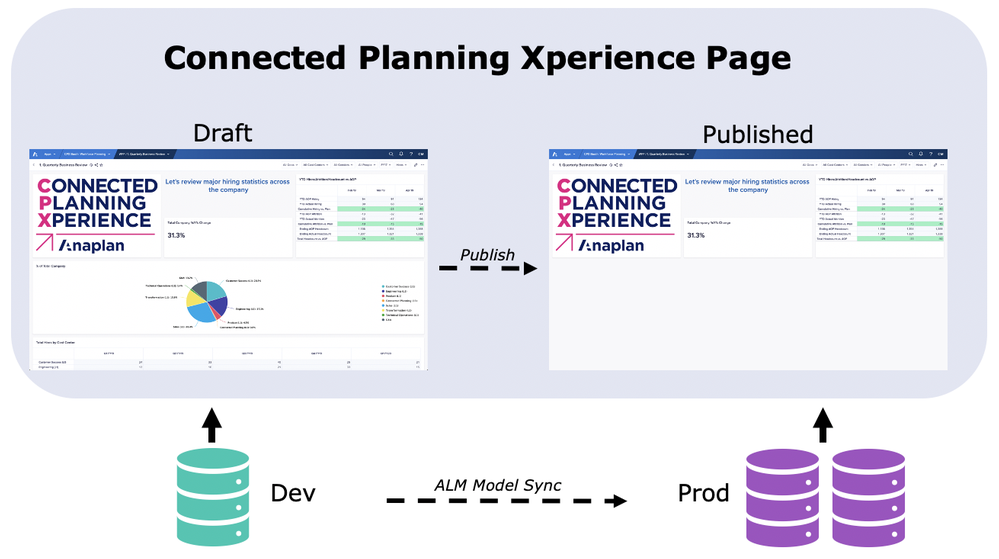

In the visualization below, the Connected Planning Xperience page on the right in production has an image, text, KPI, and grid cards, which is accessible to users of the two associated production models. On the left, the page’s draft state is connected to the development model and has additional chart and grid cards saved ready for publishing after the ALM model sync process.
UX features to use support ALM processes
These features enable ALM processes today:
-
Draft pages enable you to create, build, and save new pages to publish later.
-
Preview enables you to view changes to your page as you go, before you publish.
-
Change source model changes the source model from which the page displays data.
-
Multiple source models enable you to associate models from across the application lifecycle (development, test, production) to a single page.
-
Switch between associated models enables users with access to multiple associated models to choose their source model.
-
Duplicate app copies a complete app.
-
Duplicate page copies a page.
-
Move page moves a page from one app to another.
-
Page access control restricts access to a page via the roles assigned in the source model(s) the page connects to.
UX ALM process today
Example use cases supported in phase one
|
Development and production models |
Development and many production models | Development, test, and production models | |
| Example | Finance Dev Finance Prod |
Finance Dev Finance Prod EU Finance Prod NA |
Finance Dev Finance Test Finance Prod |
| Supported? | Yes Changes can be made against Dev and published against Prod when ready |
Yes Changes can be made against Dev and published against all Prod models when ready |
Partially Changes cannot be published to Test without being published to Prod at the same time. The app or page with all draft changes can be duplicated and repointed at Test until this is natively supported. |
Work with draft pages and production models
This example walks you through the process to create and update pages in an app alongside model synchronization updates.
There are three stages to this process:
-
Create your app and associated models.
-
Make app changes based on the development model.
-
Synchronize and publish your changes.
Create your app and associated models
Create your app with pages and associate the models in your ALM flow with those pages.
In this example, we have one app, two pages, and three models (Dev Model, Prod Model A, and Prod Model B) associated with each page.
Make app changes based on the development model
Create new draft pages and save unpublished changes to pages based on structural changes to the development model (shown in green below). These drafts and unpublished changes are not visible to end users until they are published. It's not necessary to create another app to make changes against the development model before you publish them to end users.
Synchronize and publish
Synchronize model changes from the development model to the production models and then publish new draft pages and unpublished changes in published pages. Once you synchronize your development and production model, end users can use these new app components and changes.
After the ALM model synchronization process, all models are up to date in a new version (v2). The app pages are up to date based on the publish process. Note the middle page is still blue in the diagram below because we did not make any changes to this page.
Work with test models in a development, test, and production workflow
This example describes how the UX ALM functionality can support test models in the lifecycle.
The current UX ALM functionality supports one draft and one published version of a page. It is not yet possible to publish different versions of the page to different associated models (that is Test and Prod).
Example configuration: Consider this configuration where an app with pages is associated with a development and production model.
Make the necessary changes to your app and pages against the Dev model in draft form.
-
Duplicate the app (the draft changes are also duplicated).
-
Once duplicated, update the associated models of the new test app from Dev and Prod to Test.
-
Synchronize changes from the Dev model to the Test model.
-
Publish the draft and unpublished changes made to the pages in the duplicated app.
-
Invite users to test.
Once the page changes are published and the pages have been associated with the Test model, users can be directed at the test app to test the latest changes to the app and model before they are published in the original app. -
Synchronize model changes to the production model.
-
Publish the page changes in the original app associated with Dev and Prod.
-
Delete the duplicate app.
Contributing author Chris Marriott.
Comments
-
@sprender Thanks for compiling this. I am looking forward to the Implementation of Future Road map for New UX. However I have a few queries:
- Why can't I just Duplicate the app - call it Prod App and change the source Model of this Prod App. Why the need for additional step of duplicating the Dev app and pushing the changes from duplicated Dev app and later deleting it? How is it considered to be best practice?
- Also when I make any structural change in a model I never used to worry what all dashboard can this have an impact upon. For example changing the logic of my filters. Now with this approach I will have to make sure that I know what all pages are getting impacted and delete those pages and replace it with newer ones. What if I miss any one of the pages?
3 -
@Misbah thanks for the feedback.
- You can still use this approach and in many cases this makes the most sense. If you are just updating a few pages, want to keep your My Pages within the app or you want to keep the fixed URLs then you can use the second approach.
- Not sure I fully understand this point but as stated above you can use the duplicate app method if this works in your use case.
0 -
@sprender thanks for this article that explains how to manage the apps and pages in Anaplan UX.
I think the purpose of the ALM of the Anaplan NewUX should be to fill in the gap between how currently the classic dashboards are managed and the apps and pages in Anaplan UX.
Currently, any small modifications made in DEV model in classic dashboards (filters, column widths, formatting, Content flags - security, etc..) I am sure it will be pushed to PROD model at the next push using the classic ALM. Any classic dashboard modification is considered as "structural change".
Currently, the modifications in DEV apps pages made in Anaplan UX need to be manually traced and the PROD pages need to be first deleted and then moved from the DEV app.
I think this is what @Misbah intended with point 2. In Anaplan UX, every page-builder needs to manually sign and trace for every modification that has been done to the pages in order to know which pages need to be pushed into PROD.
Below, some of the gaps between the managing of the "classic dashboards" and Anaplan UX that I hope will be addressed and solved in Anaplan UX:
- Make available the historical log of changes in Anaplan UX apps: currently it is not possible to identify who has done and when the modifications to the pages in an Anaplan UX app. It should be possible also to give the opportunity the "Restore to ID" action (similar to the classic historical log).
- Create a similar system of "revision tags" for Anaplan UX apps and the tool of the comparisons between different revision tags. this way it will be easy to identify which pages were "touched".
- Create the possibility to put a PROD Anaplan UX app in "Deployed mode". this way the page-builders will not be able to make any modifications directly in PROD app and the integrity of the apps will be assured.
- Eliminate the need to delete the pages in PROD app in order to be able to copy them from DEV app. This way, when a page will be pushed from DEV to PROD, the PROD page will be "updated" with the modifications made in DEV, and the page internal ID in PROD will be maintained.
Thanks,
Alex
8 -
Hi @alexpavel ,
Thanks for your input. I am working on this project with @sprender and hopefully I can give you some reassurance.
1 and 2 - We have plans for a history/version log in Phase 2 - we’ll be sure to incorporate your feedback. We also have plans to highlight to page builders where draft versions exist so changes can more easily be tracked down.
3 and 4 - Phase 2 includes the concept of App Modes which will introduce a more formal process around draft and published versions of pages - this will eliminate the need to delete prod apps to update them with a new version.
I hope this helps
Thanks, Chris
1 -
In both these approaches either a page within the PROD APP or the entire PROD APP needs to be deleted but I have a query who is going to do that? I mean I as a consultant wouldn't be having access to Prod Models and hence wouldn't be able to make that change. Are we expecting clients to make that change?
(Edit - @DavidSmith @rob_marshall FYI )
@alexpavel Thanks for elaborating on that point
0 -
Hi @Misbah,
I believe the current permissions behaviour is similar to the model synchronisation capability of ALM, ie. the user performing the model synchronisation needs to be a workspace administrator of both the source and target models. Maybe you could send me a message and we could start a conversation about the implications of that current requirement?
Thanks,
Chris
0 -
Hi @ChrisM ,
great to know you're working on history log for New UX apps!
However what complicates our team's life more than all mentioned is that you cannot see if a module is used somewhere in the app.
Imagine doing an audit and seeing a module, which should be optimized/removed. In classic UX you could see if the module is populated on a dashboard and know if users can access it and what you'll need to revise after changes. In New UX you have to go through whole app to check if a module is populated to understand the impact of the change.
Are there any plans to introduce something similar for apps? It may be an additional column like "published in App" with the names of the page/worksheet in it.
Thanks,
Haik
7 -
Is there any way to apply page-level changes in bulk in NUX? I have a small (14-page) app that I would like to update to using two modules per page as described above - currently that's 15 clicks per page to make these changes. I also would like bulk changes for Manage This App > Manage Models, as when copying an app and changing the model, it's painful to have to click through two dropdown boxes per page to make changes.
Thanks!
0 -
Tagging onto this thread to keep up to date on how ALM is progressing for apps. I think the current paradigm for having a single app / page linked to multiple models is confusing in its current state. In my opinion, it would be must easier to follow something similar to the model ALM paradigm, where you sync to push changes from Dev to UAT/Prod, etc. Ideally syncing page by page or the entire app.
2 -
@ChrisM what is the status of Phase 2?
We are now four years into this NUX experiment and, as far as I can tell, still in the Phase 1 implementation that remains painfully flawed.
The multiple model support feature is neat for tenants who deploy multiple copies on the same model, but in no world is it ALM. It’s like trying to make a silk purse from a sow’s ear.
As developers, we have to choose between three terrible options.
- Use one app, with the very kludgey misapplication of multiple model support, and don't have any end users test our changes prior to publication.
- Maintain two entirely separate apps, allowing end users to test prior to deployment in prod, and then manually reproduce the changes in prod.
- Do what is described above, save drafts and duplicate pages or entire apps for users to test against before publishing to prod and then delete those test pages. A constant churn of test pages and busy work.
I will echo the problems highlighted three years ago by @alexpavel and @Hayk above all of which remain unaddressed.
- change history - who changed which page element when, and what changed
- revision tags
- multiple persistent tiers (dev, qa, UAT, stage, prod) with published pages accessible by non-Page Builder testers
- Controlled and tracked app sync from tier to tier
- Deployed mode apps that are locked from Page Builder changes
- Identifying which modules, line items, views, and actions are embedded in which pages (the recently introduced Pages tab is a start, but it still doesn’t address this)
The current NUX implementation remains an auditability and maintainability nightmare.
4 -
+1 to previous post
Curious to know the progress of NUX updates to tackle the auditability and maintenance for the developers.
On a separate note, does anyone have a good workaround for maintaining ability to "Change workspace"? It seems to be either assign one model and be able to quickly change workspace or enable 2+ models and lose ability to change workspace efficiently. Even reverting the multiple source model back to one does not bring back the ability to Change Workspace via drop down.
1
